Storage Rack P Girder Roll Forming Machine with Fly Cutting

1、 Equipment overview

The rolling forming machine of P-type beam of storage shelf with flying shear is a kind of mechanical equipment specially used for producing P-type beam of storage shelf. The equipment combines rolling molding technology and flying shear technology to produce P-shaped beams that meet the requirements efficiently and accurately.

2、 Main components

• Rolling molding part: This part is mainly composed of a series of rollers and molds, through the continuous rolling of the roller to the steel plate, so that it forms the required P-beam section shape.

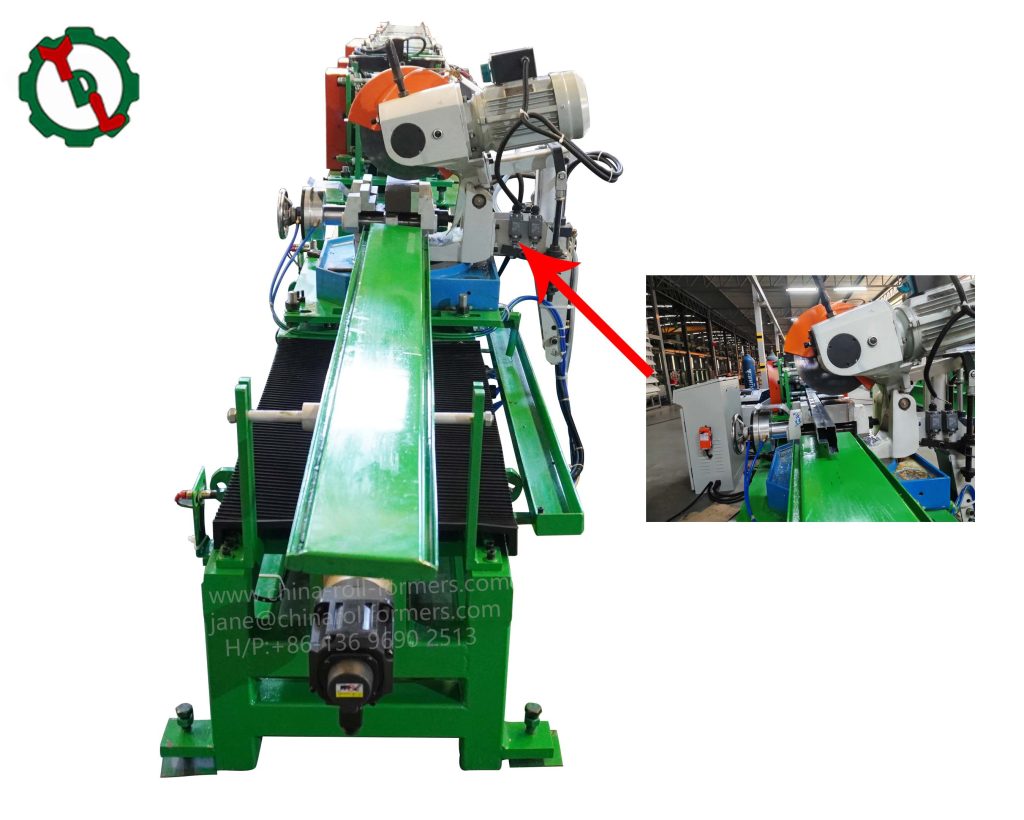

• Flying shear part: Flying shear is a fast cutting plate equipment, usually installed at the exit of the rolling forming machine. It is capable of cutting the rolled P-beam accurately according to the set length and quantity. The shear mechanism, the adjusting shear length mechanism, the cutting edge clearance adjustment mechanism and the transmission mechanism cooperate to ensure the accuracy and stability of the cutting process.

3、 Working principle

• Steel plate input: the steel plate is fed into the entrance of the rolling forming machine, and the steel plate is gradually deformed into a P-shaped beam through continuous rolling of a series of rollers and molds.
• Rolling molding: In the rolling process, the precise match of the roller and the mold ensures that the section shape and size of the P-type beam meet the requirements.
• Flying shear cutting: When the P-beam reaches the set length, the flying shear quickly cuts off the plate to form a complete P-beam.
• Output and collection: the P-shaped beam after cutting is sent out through the conveying device, and collected and processed.

4、Performance characteristics

• Efficient production: The equipment has a high production efficiency, can quickly produce a large number of P-beams.
• Precise cutting: flying shear technology ensures the accuracy and stability of the cutting process, avoiding errors and waste in the cutting process.
• Easy operation: The equipment usually adopts PLC control system, with friendly man-machine interface and easy operation.
• Strong durability: The main parts of the equipment are made of high-quality materials, with high durability and reliability.

5、 Application field

P-beam roll forming machine with flying shear is widely used in storage shelves, logistics equipment, building steel structure and other fields. It can meet the demand for P-type beams in different fields, improve production efficiency and reduce production costs.

How does the flying shear part work

The flying shear part plays a crucial role in the rolling forming machine of the P-type beam of the storage shelf with flying shear, which is mainly responsible for the rapid and accurate cutting operation when the rolling P-type beam reaches the set length. The following is a detailed analysis of the working principle of the flying shear part:

1、Overview of working principle

The flying shear part is driven by a motor to realize the rapid swing of the shear unit, so as to transverse-shear the rolling piece (in this case, the rolled P-shaped beam) in motion. The cutting process requires precise control of travel speed, position and travel interval to ensure the accuracy and stability of the cutting.

2、 the specific working principle

Walking principle:

① The flying shear part is controlled by dual motors, and precise positioning and adjustment are achieved through a series of wheels. These wheels assist the flying shears to move accurately in the cutting area, ensuring that the shearing unit is in the correct position for cutting operation.

② Cutting principle:

Flying shears use knives to cut rolled pieces. These tools are usually made of cemented carbide materials to adapt to the requirements of high-speed and high-precision cutting.

③ In the cutting process, the cutting edge of the flying shear needs to complete two actions of cutting and moving at the same time. The instantaneous speed of the cutting edge in the direction of the rolling piece should be equal to the speed of the rolling piece to ensure the flatness of the cutting surface and reduce the impact load.

④ Positioning and pressing principle:

The flying shear section is also equipped with a positioner module, which enables accurate positioning and pressing of rolled parts by controlling the guide rail, belt, cylinder, sponge wheel and various sensors.

⑤ At the same time of positioning, the rolled part is pressed by the press roller so that it is as close as possible to the cutting tool under the cutting tool, so as to ensure the accuracy and quality of the cutting.
