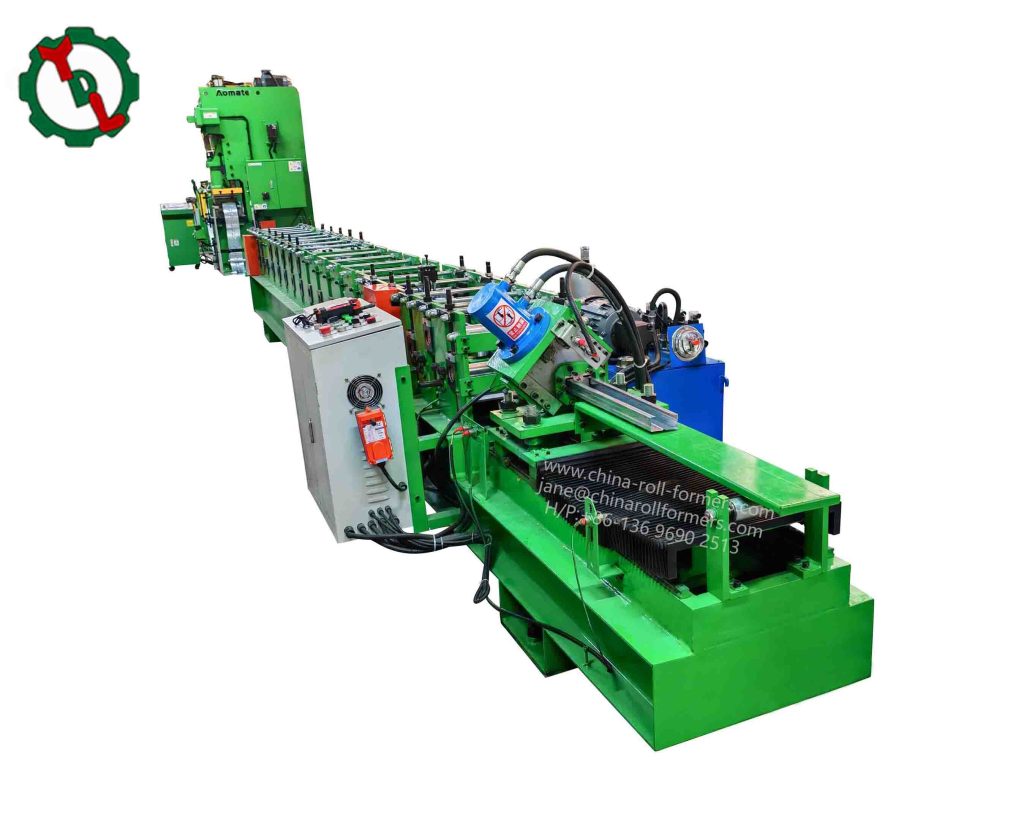

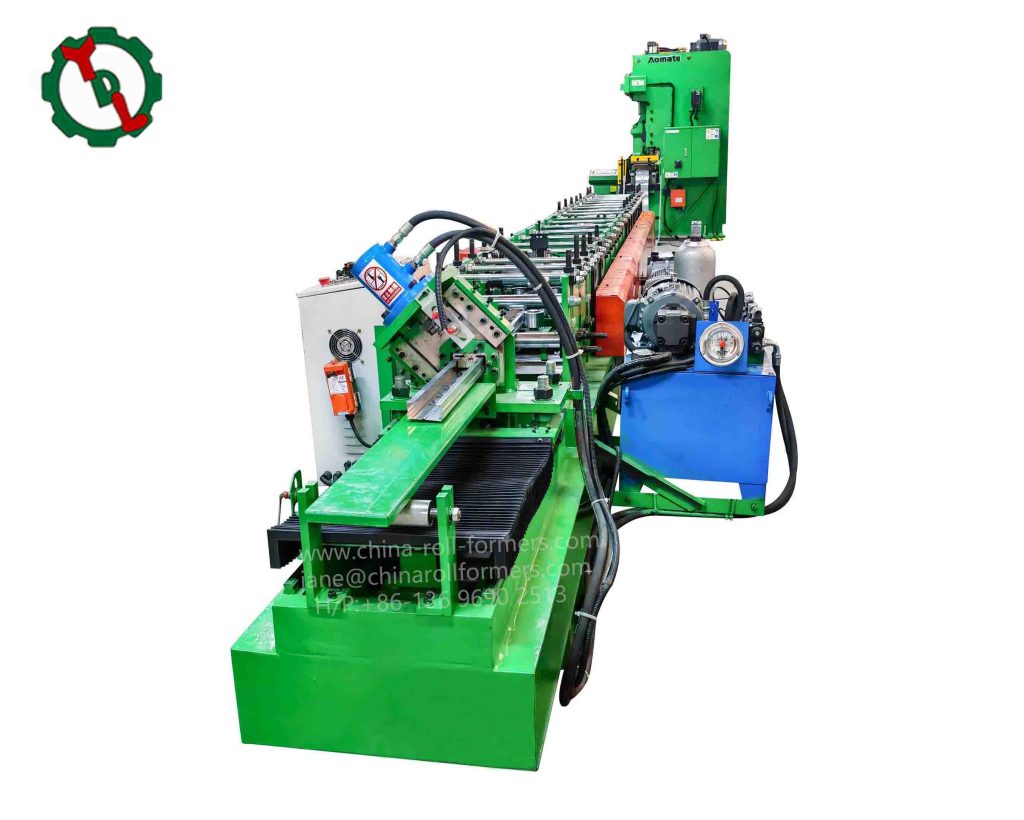

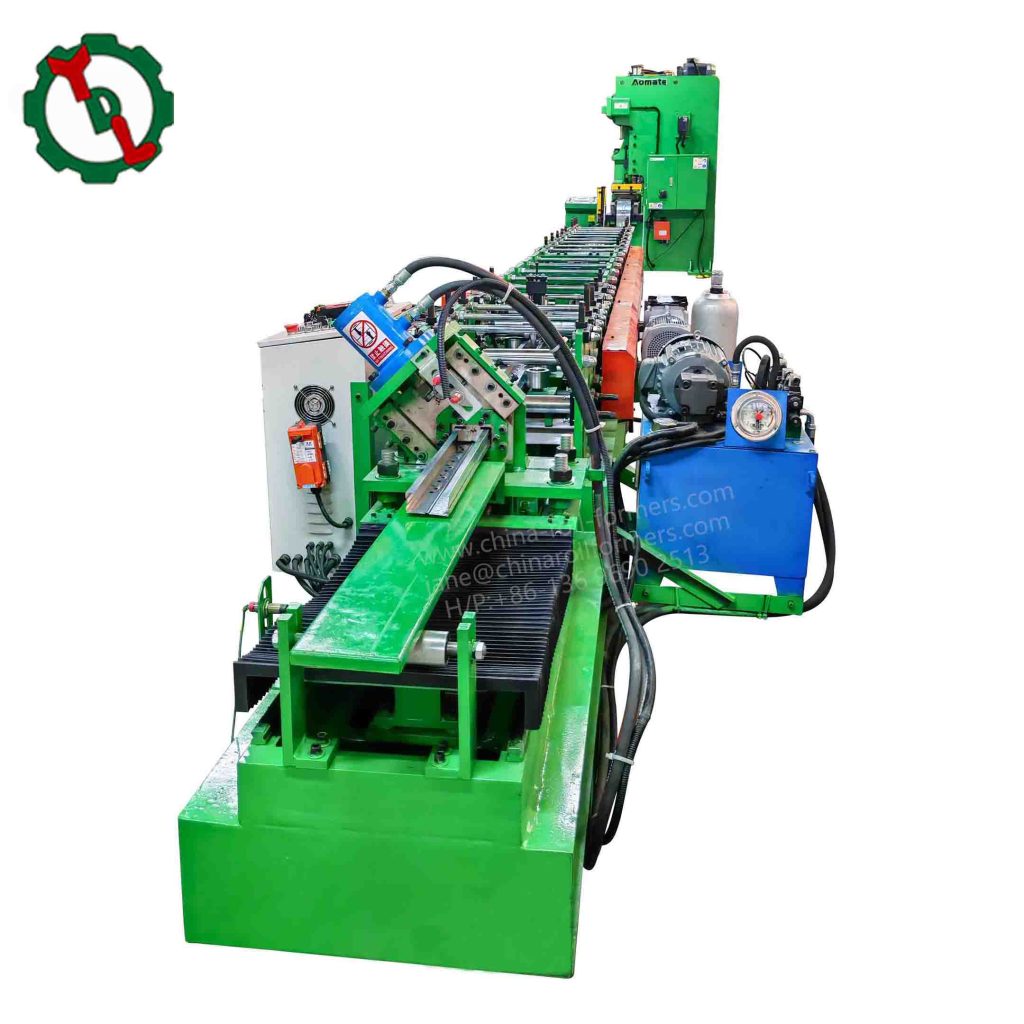

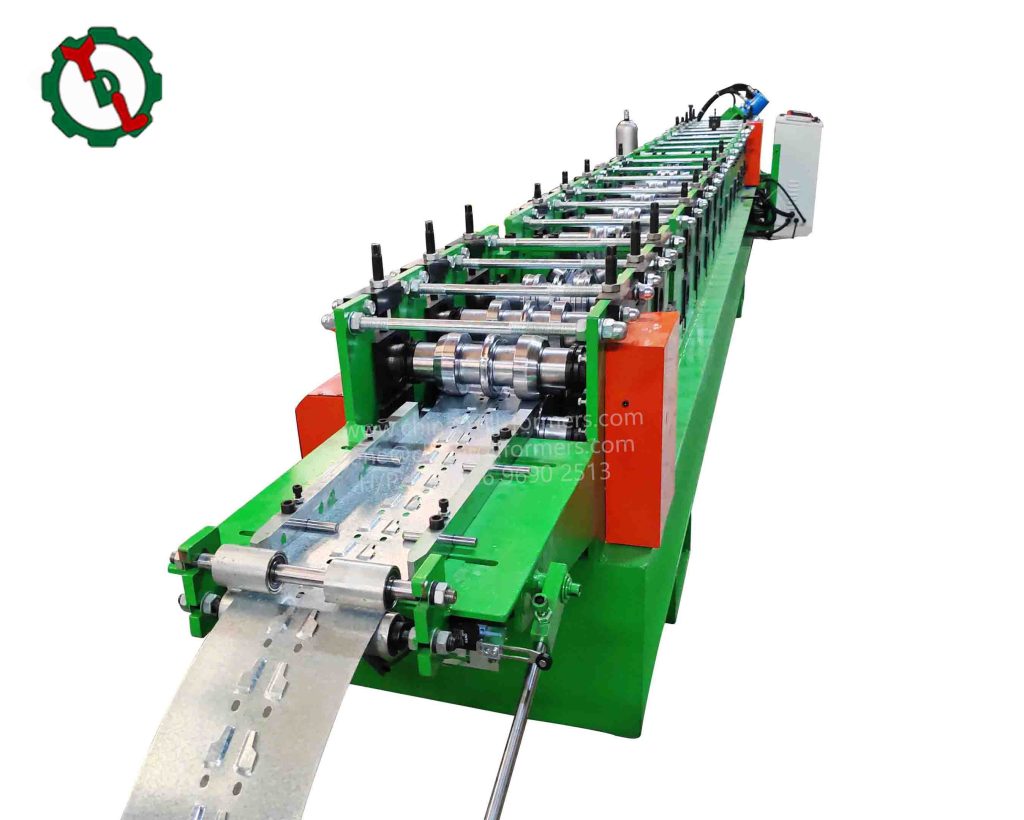

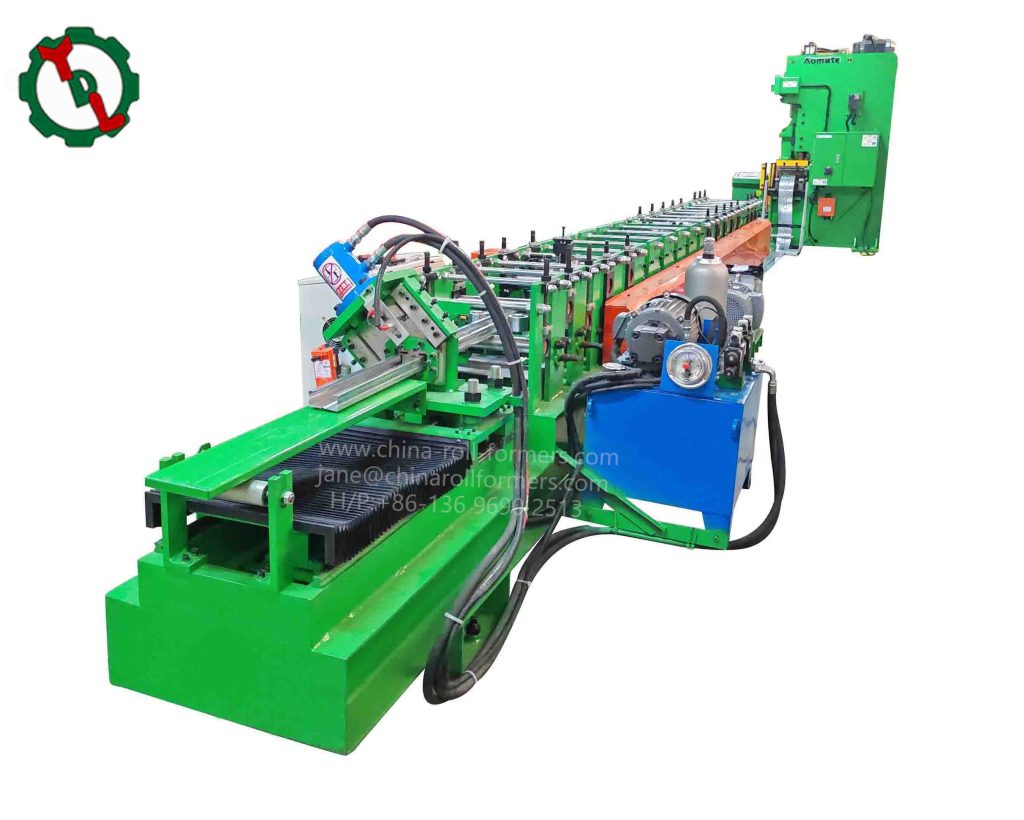

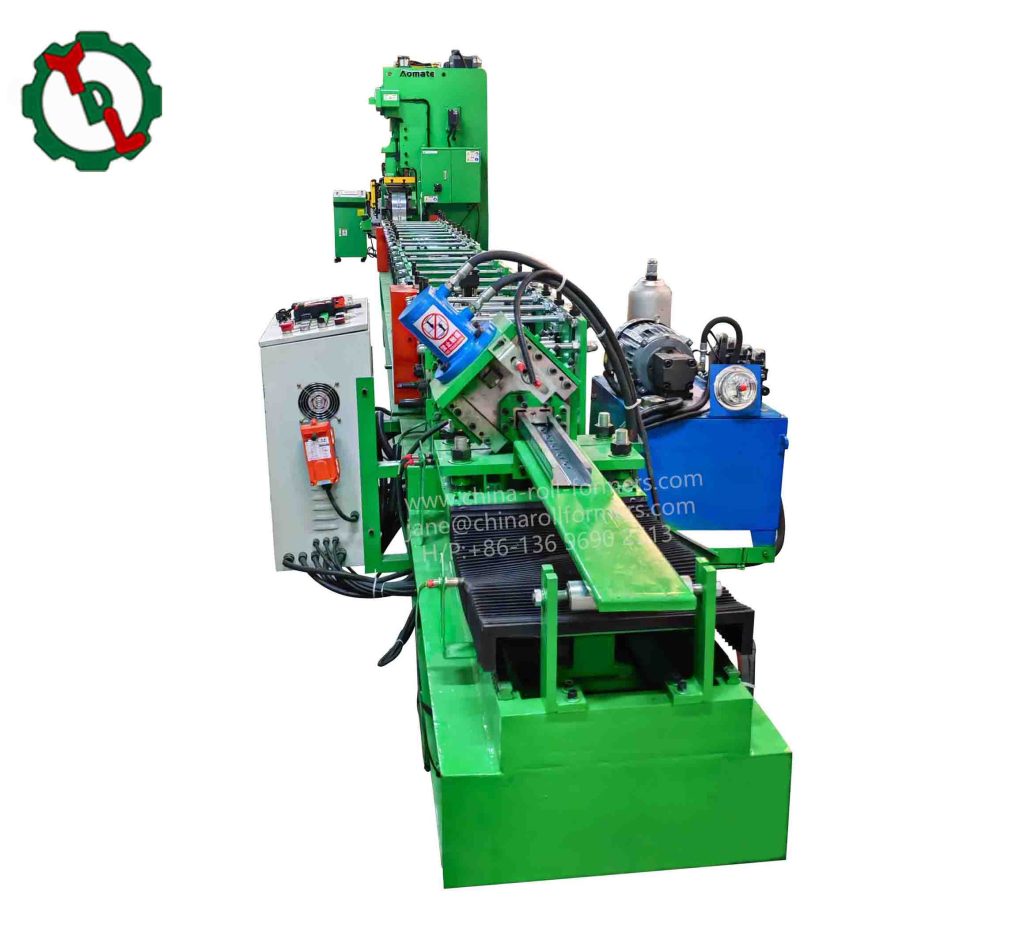

Storage Rack Column Roll Forming Machine with Pre-punching & Fly Cutting

Equipment composition

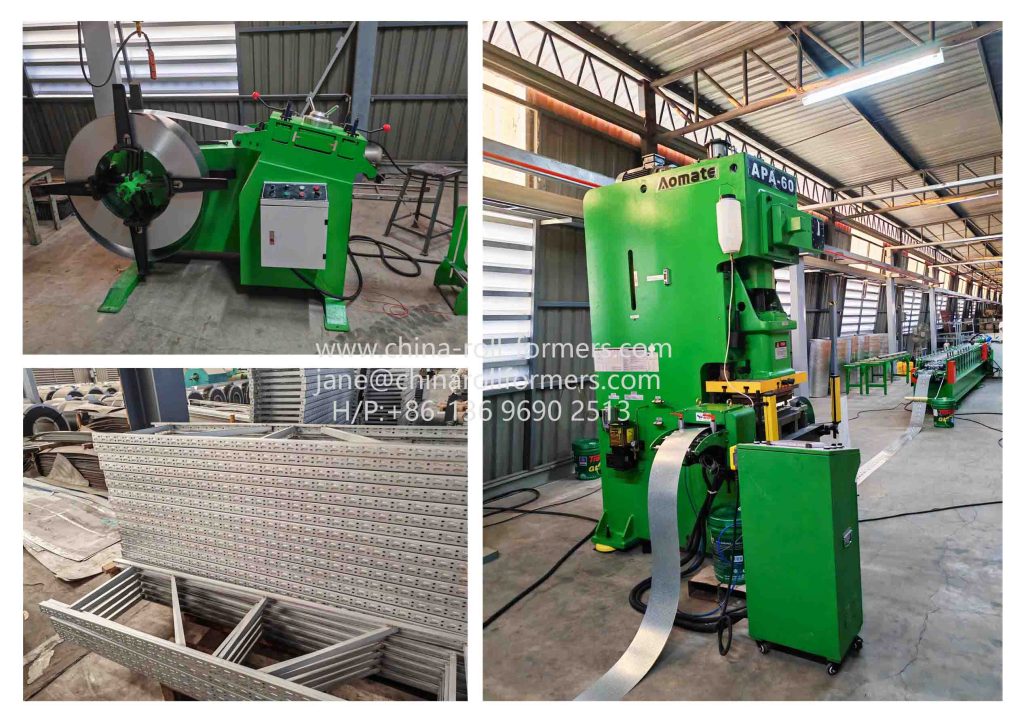

1、Uncoiling machine: used to uncoil raw materials (such as steel plates) and feed into the next process.

2、Feed leveling machine: ensures that raw materials remain flat and properly oriented before being fed into the forming machine.

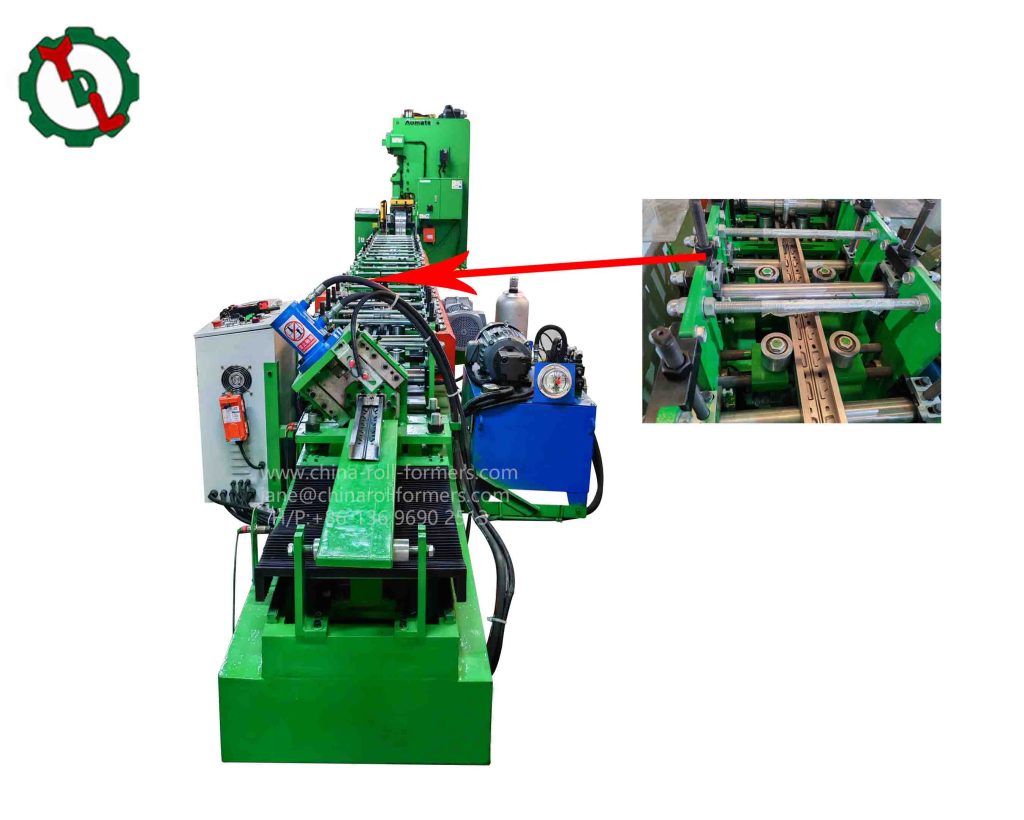

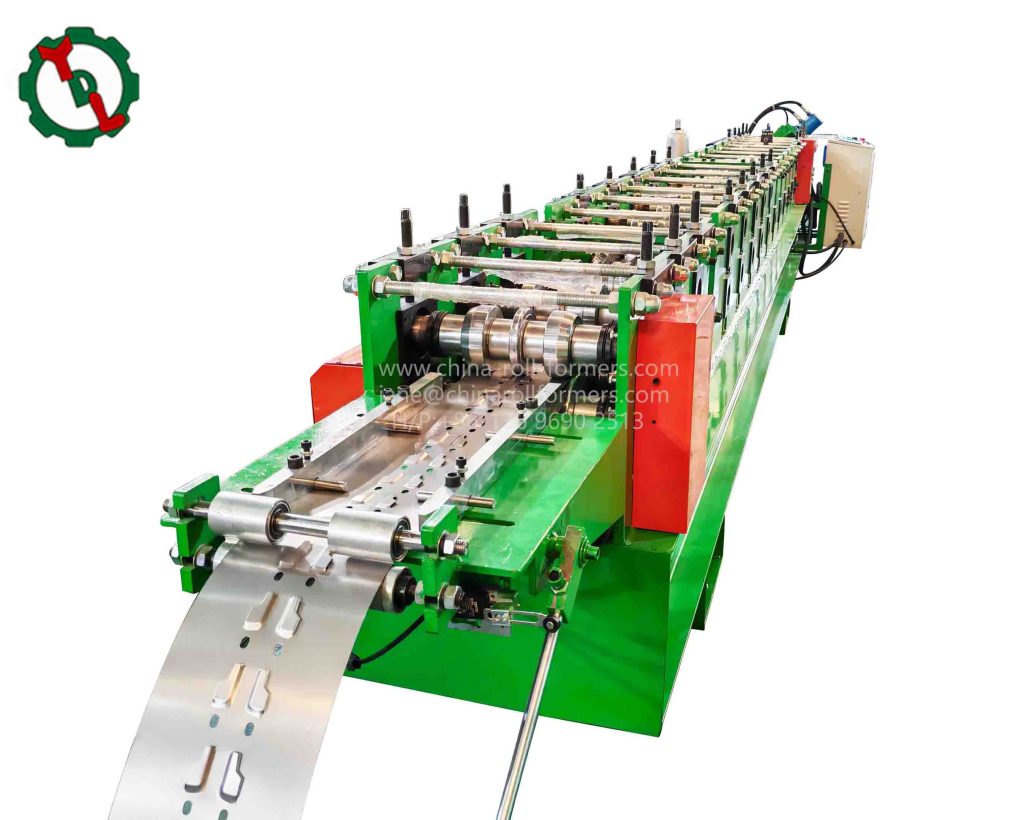

3、Pre-punching device: Pre-punching the raw material before entering the molding machine to meet the needs of connecting holes or other holes on the shelf posts.

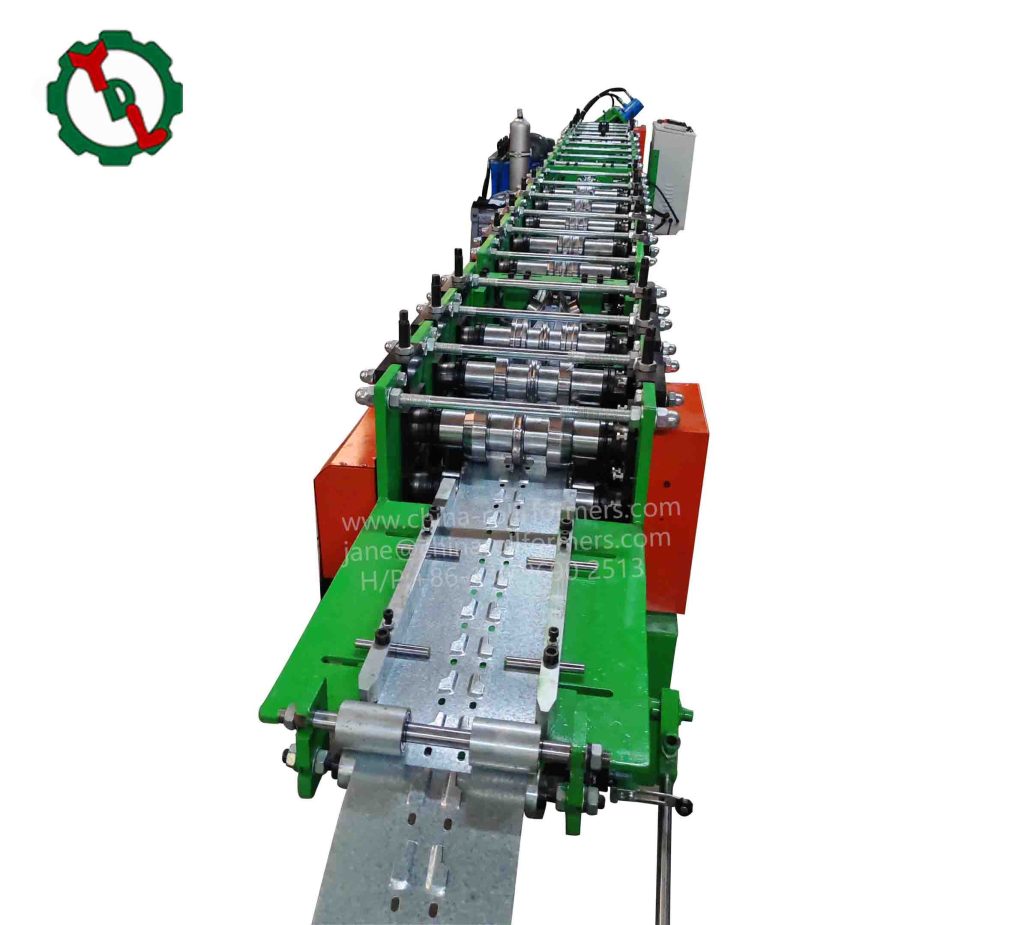

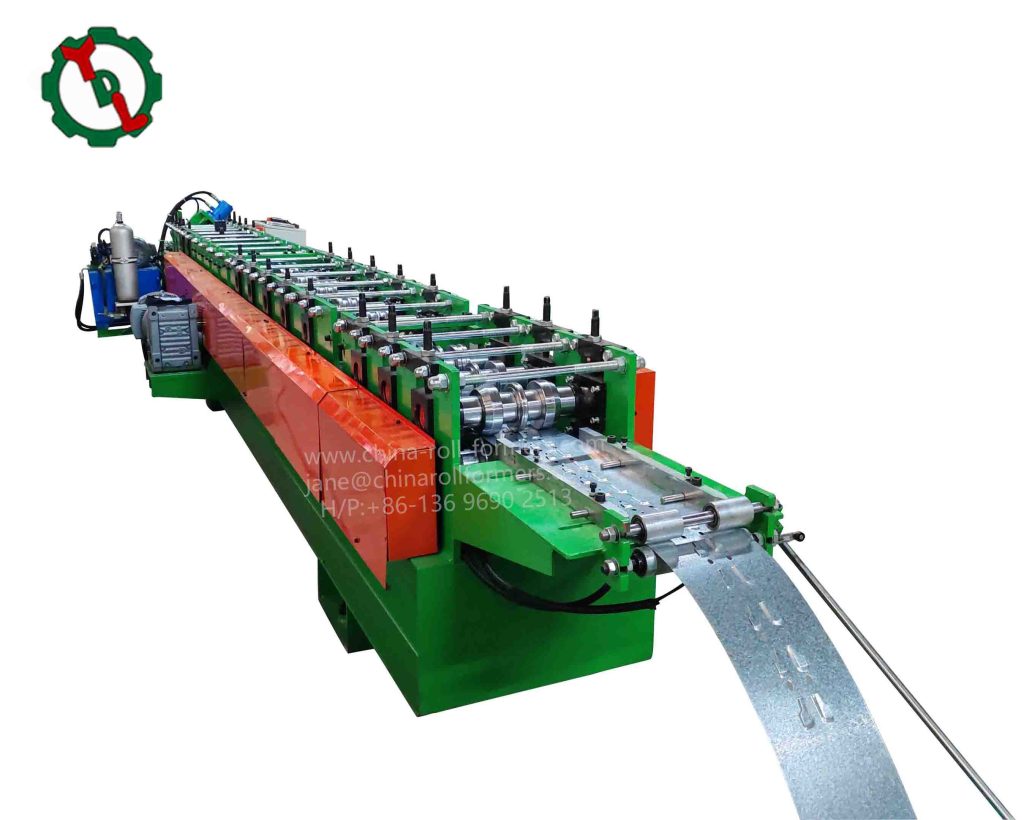

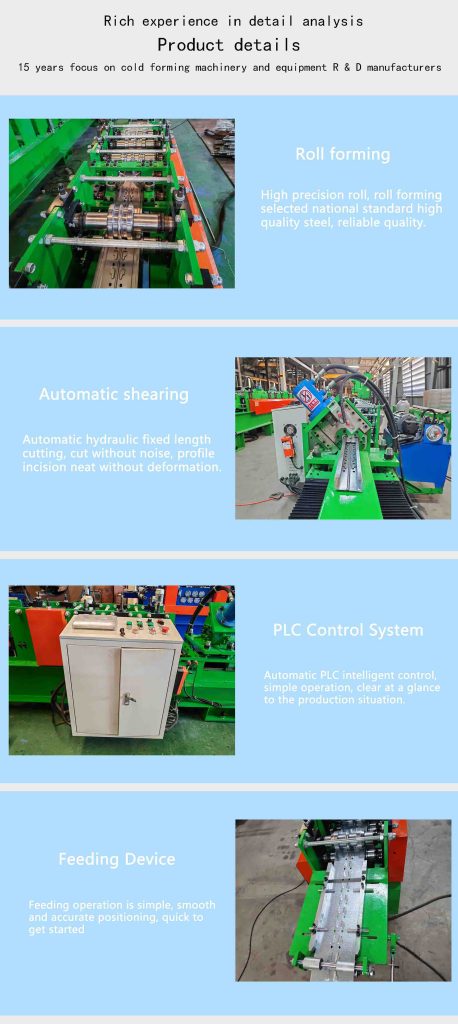

4、Forming machine: Through a series of forming rollers, the raw material is gradually bent into the desired shape of the shelf column.

5、Flying shear device: In the molding process, according to the set length, the shelf column is precisely cut.

6、Hydraulic station: Provides power to the hydraulic part of the equipment, such as the hydraulic cylinder of the pre-punching device and the flying shear device.

7、Electrical control cabinet: control the operation of equipment, including start, stop, speed adjustment, length setting, etc.

8、Discharge rack: used to receive the formed and cut shelf post.

What is the difference between a pre-punch device and a flying shear device

The pre-punching device and the flying shear device play different roles in the metal processing equipment,  and the main differences between them are reflected in the function, working principle and application scenario.

1、functional differences

① Pre-punching device:

• The main function is to pre-process holes in sheet metal or strip.
• These holes are usually used for subsequent connection, fixation, or removal of waste materials.

② Flying shear device:

• The main function is to perform fast and precise cutting in the continuous production process of metal wire or strip.
• It is usually used for cutting the length, cutting the end, cutting the sample and dealing with accidents on the production line.

2、Difference in working principle

① Pre-punching device:

• The working principle is to use the stamping process to press the metal sheet or strip through the stamping die to form the holes of the required shape and size.
• It can be achieved by mechanical stamping or electric discharge machining.

② Flying shear device:

• The working principle is to achieve precise cutting of the blade in high-speed motion through a series of complex mechanical structures and control systems.
• The flying shear device usually includes a flying shear body, a feeding system, a transmission system and a control system, among which the flying shear body includes a cutting mechanism, an empty cutting mechanism, a uniform speed mechanism and a cutting edge clearance adjustment mechanism.

3、Differences in application scenarios

① Pre-punching device:

• Widely used in mold processing, sheet metal processing, auto parts manufacturing and other fields.
• especially in scenarios where holes need to be pre-machined to improve processing efficiency and product quality.

② Flying shear device:

• Mainly used in continuous production lines of metal wire or strip, such as steel rolling production lines, wire and cable production lines, etc.
• It can cut metal wire or strip quickly and accurately to meet the efficient operation of the production line and product quality requirements.

There are significant differences between pre-punching device and flying shear device in functions, working principles and application scenarios. The pre-punching device is mainly used to pre-process holes in sheet metal or strip, while the flying shear device is mainly used for fast and accurate cutting in the continuous production process of metal wire or strip.

Five characteristics of steel:

1, the common “several” word purlin structure, effectively deal with the greenhouse temperature difference formed by the drip dew phenomenon, can effectively deal with the greenhouse in winter dew question.

2, hot dip galvanized steel plate material, good corrosion resistance, longer life, normal service life of not less than 15 years.

3, the appearance is beautiful and modern, the overall structural strength is greater, and the bearing capacity can be far greater than the previous steel pipe structure.

4, all the greenhouse skeleton selection of stereotyped equipment production, convenient device, no solder joints, time will not rust.

5, 10 meters within the span of the skeleton center without pillar, greatly increasing the farming area, saving labor, increasing efficiency.

Choose our strengths

1.Experience: We have 15 years of industry experience and expertise to provide you with high quality services.

2.Efficient production capacity: YOUDELl has advanced production equipment and perfect production process.  We adopt modern production management methods to ensure that every production link is optimized, thereby improving production efficiency and quality.

3.Innovative thinking: We have innovative thinking and advanced scientific and technological means to provide customers with better solutions.

4.Professional team: YOUDELl has a professional research and development team dedicated to the development of efficient, reliable and intelligent equipment. We use the most advanced technology and processes,We have a professional team that can provide you with a full range of services and support.

5.Quality service: YOUDELl company always adhere to the customer-centric service concept. We provide a full range of pre-sale, sale, after-sales services to ensure that customers in the purchase and use of products in the process of timely help and support.

6.Reasonable prices: We offer reasonable prices and fees to make your investment worthwhile.

7.Integrity management: We adhere to the concept of integrity management, and can establish long-term stable cooperative relations with customers.

8.Good brand image: YOUDELl has a good brand image and reputation in the field of roofing machinery and related equipment. We pay attention to product quality and service, won the trust and recognition of customers, and set up an excellent image in the market.

1. Upon request, we can design and build any kind of roll forming machine.

2. This is a very dependable piece of machinery. We have more than 15 years of experience.

3. This kind of equipment has the best quality and price. It is easy to use and provides precise measurement.

4. Depending on the requirements of the clients, we can create special devices.

5. We may provide technical support, production, installation, debugging, and maintenance services to all customers.

6. Our product has a strong reputation and has been exported to many places due to its high quality and competitive cost.

01.How can I pick the best machine for me?

1. A machine doesn’t only show a few images to demonstrate its capabilities.

2. A machine ought to have images and videos of a comprehensive production and assemblysystem. Making sure a company has a thorough

after-sales service system is essential whenselecting one with a factory.

02.How can we ensure quality, then?

Before mass manufacturing, there is always a pre-production sample; before shipment, there isalways a final inspection.

03.What products do you offer for sale?

Roof tile Roll Forming Equipment, Wall Roll Former, Tile Forming Equipment, and C Z-PurlinForming Equipment.

04.Do you offer post-purchase support?

With 15 years of production expertise, the strength to ensure, product quality is paramount andservice is the biggest after-sales benefit.

05.How do I request a quote?

1. Please provide me with the dimension drawing and thickness; it is crucial.

2. Please specify in advance if you have any requirements for manufacturing speed, power.voltage, or brand.

3. lf you don’t have your own outline drawing, we can suggest various models based on what istypical in your area.
